Stand-alone chassis to convert Serial into E1

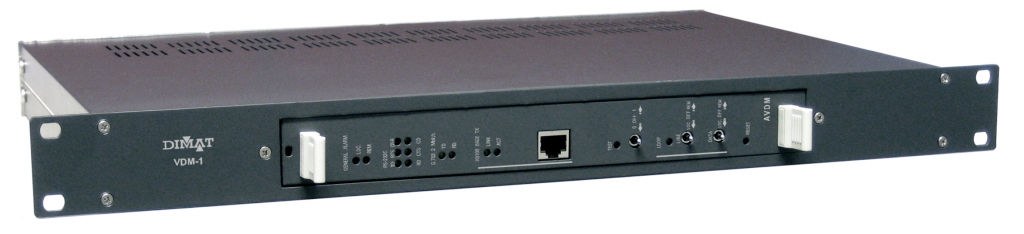

The VDM-1 consists of a 19”/1 s.u. chassis with an embedded single converter module type AVDM.
- Line interface: 2 Mbit/s. Duplex transmission. Codirectional clock. 75 Ω input and output impedance. BNC connector.
- V.24 data interface: from 50 up to 19200 bit/s. 25-pin SUB-D connector in DCE configuration.
- Equipped with test devices for a rapid operational check.
- Optical indications.
- Web management system with LAN connection.
- External connections at the rear of the equipment. The LAN interface connector is located on the front plate.
- Compact 19″/1 s.u. chassis.
- Instructions Manual: VDM-1_Description_r5-i
- Product Brochure: ZIV_PLC_&_TP_English_rev_2.5 (EN) ZIV_PLC_&_TP_French_rev_2.5 (FR)
