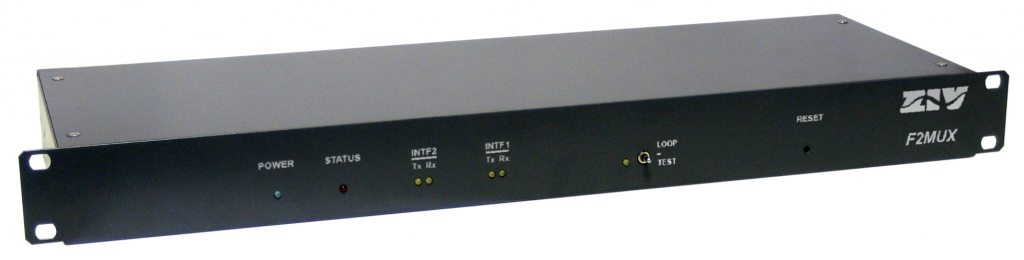

F2MUX – Universal Converter

The F2MUX family is intended to convert an optical interface into an electrical or optical interface.

Available transparent mode to be compatible with any existing protocol.

Key features:

  • Complies with IEC TS 61000-6-5 standard.
  • The F2MUX family is able to convert optical (INTF1) into electrical or optical (INTF2).
  • INTF1 operating mode: C37.94. CMI/FM0 at 64 kbit/s, 128 kbit/s, 512 kbit/s or 2048 kbit/s.
  • Transparent 1 (up to 28800 bit/s). Transparent 2 (up to 960 kbit/s).
  • F2MUX.10: Optical (multimode) into electrical (G.703 at 2 Mbit/s).
  • F2MUX.11: Optical (multimode) into electrical (G.703 at 64 kbit/s)
  • F2MUX.12: Optical (multimode) into C37.94 optical (SFP bay).
  • F2MUX.13: Optical (multimode) into C37.94 optical (multimode)
  • F2MUX.20: Optical (single mode) into electrical (G.703 at 2 Mbit/s)
  • F2MUX.21: Optical (single mode) into electrical (G.703 at 64 kbit/s).
  • F2MUX.22: Optical (single mode) into C37.94 optical (SFP bay).
  • F2MUX.23: Optical (single mode) into C37.94 optical (multimode).
  • Test devices (INTF1 and INTF2 loop; INTF1 and INTF2 test).
  • Optical indications.
  • Compact 19″/1 s.u. chassis.
  • Integrated multirange isolated power supply (36-300 Vdc, 38-265 Vac).
