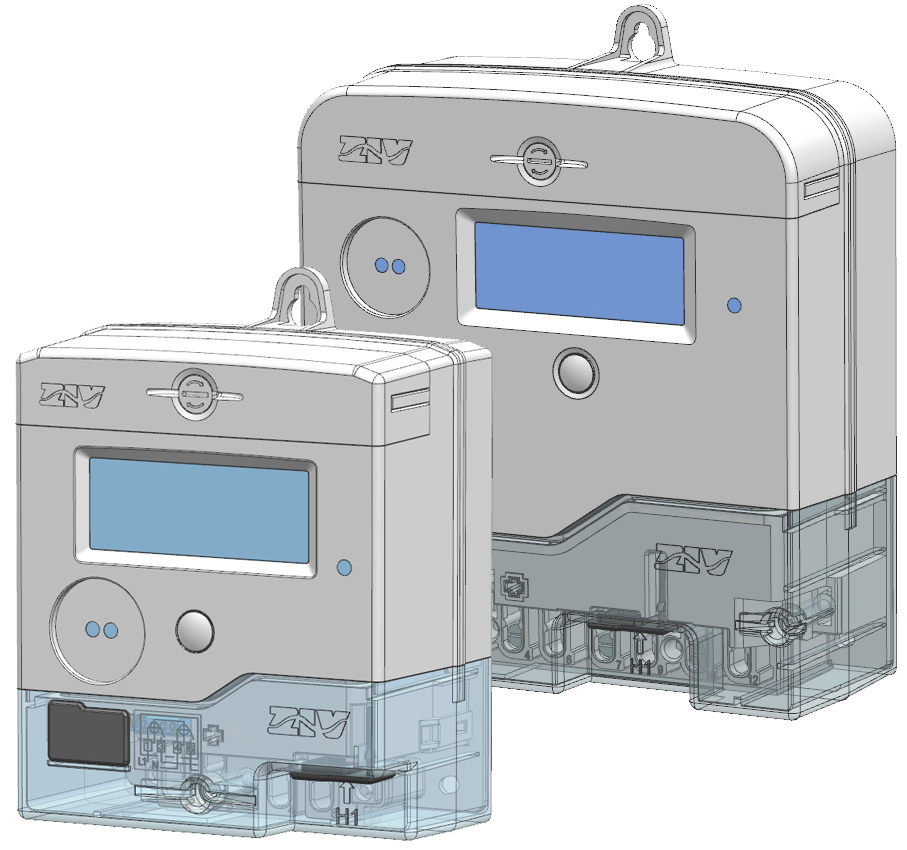

1ph & 3ph Smart Meters | 5CTH

Along with ZIV’s meter management software and the appropriate permissions and passwords, the user could configure and use the multiple functionalities of the meter: events, TOU, synchronization, disconnection element (SCS) and many more. 5CTH smart meter can be operated using DLMS/COSEM application protocol.

Features

• Robust automated meter reading (AMR) solution for DSOs
• Energy measurement, load profile and Time of Use (TOU) features
• Multiple communication interfaces:

H3 interface for remote reading. LTE module.
H2 interface for communication with non-electrical meters. Wireless M-BUS module.
H1 interface for communication with OSM (Other Service Module), wired interface with a RJ12 connector.
H0 interface. Service and Maintenance optical port.
HMI for local reading and LEDs for status indication and accuracy testing.
MEP interface: Serial port for future purposes.

Main applications

• Instantaneous measurement of voltage, current and power factor per phase, as well as instantaneous network frequency.
• Provide meter present reads (electric and non-electric data) to other service modules through H1 interface.
• Load profile recording including not only electrical energies, but also non-electrical measurements (e.g m3 gas).
• Versatile Time of Use (TOU) module with up to 4 seasons, 4 weekly profiles, 4 types of days and 6 tariff rates.
• End of Billing data (monthly and daily).
• Supply Control Switch (SCS) operation: demand management and overvoltage protection.
• Security and operational features able to provide protection across all interfaces including self-monitoring and fraud protection.
• Gateway through H2 port for non-electrical meter measurements (multiutiliy meter).
• Remote communication through H3 interface.
• Time synchronization.
  Event recording. Event and alarm recording with broad set of manageable events.
• Power Quality recording. Voltage variations outside the established thresholds and long term voltage interruptions.
• Remote firmware upgrade.
• Self-diagnosis and monitoring.
