Routers

Our product range is evolving towards more secure and versatile devices with enhanced capabilities to adapt to the demands of a constantly evolving market

Common Functionalities / Capabilities

  • HTTP/HTTPS
  • Telnet
  • SSH
  • FTP/FTPS
  • SNMPv1, SNMPv2c, SNMPv3. SNMP Traps
  • Syslog
  • Periodic reset
  • DNS client and relay
  • Dynamic DNS client
  • DHCP server and client. DHCP relay
  • NTP/SNTP server and client
  • VLANs
  • Port speed automatic detection
  • Static routing information (configured by the user)
  • Dynamic routing information (RIP & OSPF routing protocols)
  • VRRP redundancy protocol
  • NAT rules
  • IPIP (IP over IP) and GRE tunnels
  • IPSec tunnels with DMVPN (Dynamic Multipoint VPN) support
  • NHRP (Next Hop Resolution Protocol)
  • NHRP Keep Alive
  • Filtering L3 (IP Address and Service)
  • Stateful IP firewall
  • Protection against DoS attacks
  • Assignment of Quality of Service (QoS), and layer 3/4 QoS management
  • TACACS+ and RADIUS clients
  • Ping Keep Alive/TCP Keep Alive for WAN cx
  • Role Based Access (RBAC)

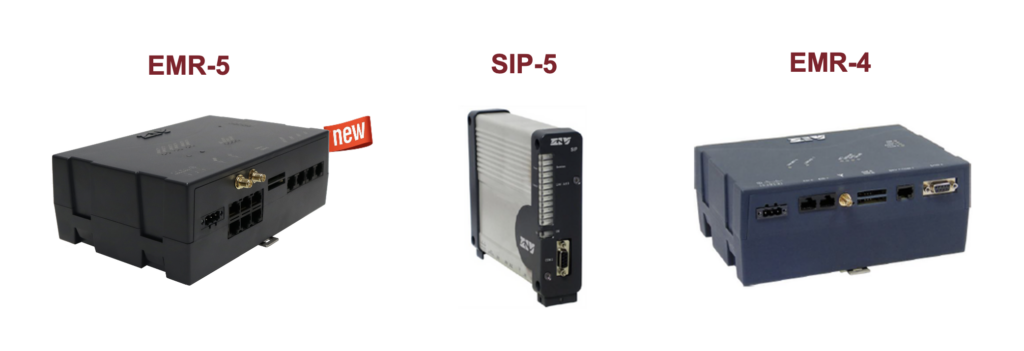

ZIV Routers

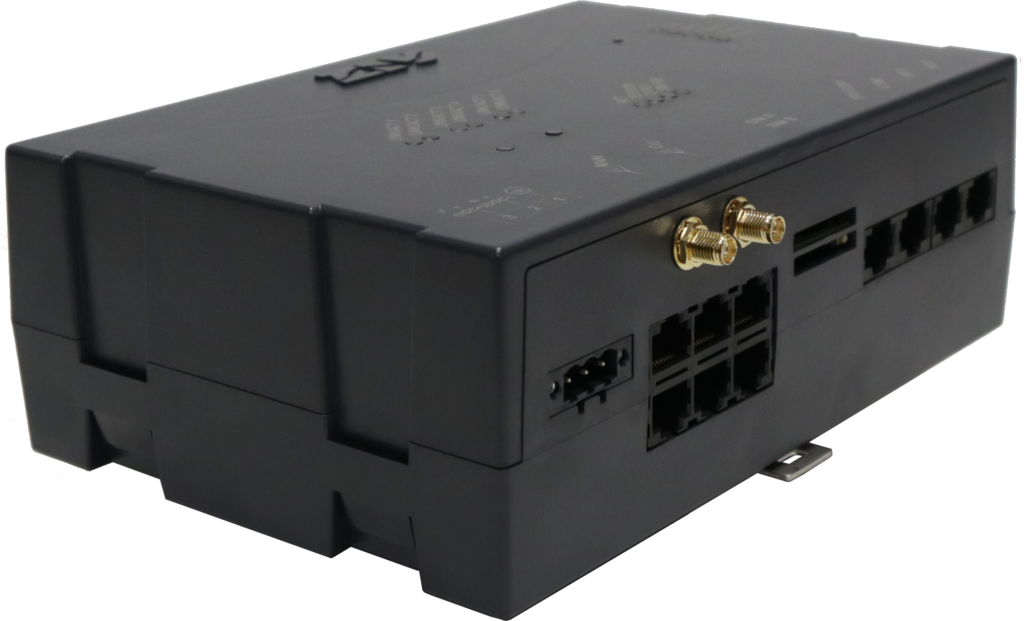

EMR-5 / Router WAN+LAN+serial

  • Significant improvements in cybersecurity and connectivity.
  • Second antenna for signal diversity.
  • Higher UL/DL transmission speeds
  • Strong passwords, root user removal and advanced logs for network analysis.
  • Enhanced power supply, including support for 12V and 24V.
  • Configurable serial ports and digital inputs and outputs available.

EMR-4 / Serial to IP Encapsulator + Versatile Router

  • Designed with 2 Ethernet ports and 2 serial ports.
  • Communications: 4G support.
  • Plastic enclosure with no hardware to facilitate fabrication.
  • Compatible with DIN rail mounting.

SIP-5 / Serial to IP Encapsulator

  • 1 Fast Ethernet port type 10/100Base-Tx with RJ-45 connector
  • 1 4G (LTE) WAN interface: 2 external nanoSIM card slots (4FF).
  • Options: 1x DB9: RS232/RS485

2nd DB9: RS232/RS485-2w/RS485-4w

  • 2 Digital Inputs with 4 pin connector
  • Optional: 2nd SMA antenna connector for RxDiversity
  • 1 SRV with miniUSB connector (model dependant)
  • Power supply:

10.5 – 68Vdc

36 – 360Vdc / 60 – 265Vac

New in EMR-5!!!

Cellular modem

  • LTE Cat4 (DL 150/UL 50Mbps)
  • pLTE B40 (TDD 2300MHz)
  • Double antenna for Rx-diversity

Cibersecurity

  • Role Based Acces
  • root user removal
  • Secure passwords
  • Non-secure protocols disabled by default
  • Ports disable

Analysis

  • Specific log files for diferente events (auth, events, security)
  • Firewall events registered in a new specific log
  • Network quality monitoring
  • Wireshark-format dumps

Literature

EMR-4 / Serial to IP Encapsulator + Versatile Router EMR 2 / Compact WAN Router SIP-5 / Serial to IP Encapsulator + 1 Eth SIP-3 / Serial to IP Encapsulator + Eths (FO)
