SmartControllers – Universal Platform for Distribution Automation & Substation Automation

SmartController is a highly flexible monitoring and control unit for use in Distribution Automation or Substation Automation.

It can be used for a variety  of applications including, an Intelligent Controller, Data Concentrator, Gateway Unit, RTU, Local Operator Interface and Fault Detection Unit. It is designed to be panel mounted or wall mounted and incorporates a full colour graphics display for local control and operation. It can monitor and control multiple switches/feeders through user definable graphics. It can interface with existing meters, IEDs and protection relays for a complete integrated solution.

Key features

  • Colour Display Panel (QVGA, 5.7” display)
  • Ethernet & RS232/485 communication ports
  • IEC 61131 programming
  • Modular I/O with fast disconnect
  • DC and AC analogue measurements
  • Direct AC Inputs for – I, V, MW, MVAr, PF, Hz measurements
  • Directional Fault indication
  • IRIG-B, SNTP or internal GPS Time Sync
  • SOE to 1ms with internal log
  • IEC61850 Communications
  • Industry Standard Protocols
  • Flexible HW: SmartController is based on flexible hardware architecture supporting a range of plug-in plant interface modules and communication options. This enables users to select the point count and communication ports to match their requirements. Plant signals are connected via removable two-part connectors providing efficient installation on site. The Local Operator Panel provides an intuitive and flexible operator interface for a range of monitoring and control applications. The Local Operator Panel displays data in both numerical and graphical format including dynamic One-Line Diagrams, SOE logs, alarm logs, fault indications, and measurements. The display also has 15 configurable alarm and status LEDs and the unit supports both keypad and touch-screen interfaces
  • Communications: SmartController can communicate to a Remote Control Centre (DMS, EMS or SCADA Master) via serial or Ethernet connection using a range of protocols including IEC104, IEC101, and DNP3.  The unit is available with different combinations of serial and Ethernet ports. It incorporates RS232/RS485 serial ports supporting a range of industry standard communication protocols for interfacing with local intelligent devices including meters, protection relays and fault recorders. The unit also supports IEC61850 for use in substation automation and interfacing with substation relays. For high availability, redundant LAN interfaces can be provided.
  • Modules: Available I/O modules include, DC Analogue Inputs, AC Analogue Inputs, Digital Inputs and Digital Outputs. The direct AC measurement module supports a full range of RMS and power measurements. In addition, the module supports directional fault detection based on limit transgression for a configurable number of power cycles, thus allowing rapid identification of feeder faults.

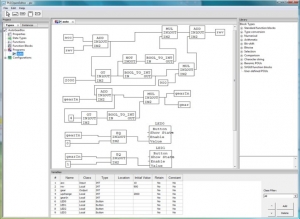

  • Tools:Through powerful yet user friendly tools, SmartController can be configured for all feeder and system level functionality allowing parameter configuration, interlocks and system applications to be configured easily. The unit supports an IEC61131 application engine which enables users to define their own specific applications. A range of maintenance and diagnostic facilities are available via the Operator Panel and USB-PC interface.





Technical Characteristics

Power Supply Module
Input Voltage Ranges

Power Rating

Hold-up Time

18-72V DC  Options: 88-265V DC; 110-320V DC;  90-265V AC; Redundant Modules

Up to 25W

200 ms

DI Digital Input Module (Optional – occupies 1 or 2 slot positions)
Inputs

Input Voltage

Input Impedance

Isolation

16 or 32 channels available           (groups of 16 inputs with 1 common)

18-72V DC or 30-160V DC or 60-300V DC

>44 kΩ

3.75kV AC (5.3kV DC)

DO Digital Output Module (Optional – occupies 1 or 2 slot positions)
Outputs

Continuous Current Carrying Capacity

Switching Current

Contact to Coil Isolation

8 or 16 Form A N/O output channels available

5A

5A @ 30V DC;   0.6A @ 120V DC;   0.2A @ 300V DC;  5A @ 250V AC

4kV AC (5.6kV DC)

DC Analogue Input Module (Optional – occupies 1 slot position)
Inputs

Nominal Range

Accuracy

Resolution

Input Impedance

Isolation

8 Differential

0-1V, 0-10V, +/-1V, +/-5V, +/-10V, +/-20mA, 4-20mA

+/- 0.1%

15 bit plus sign

200 Ω for current or >1M Ω for voltage

3.5kV AC (5kV DC)

AC Analogue Input Module (Optional – occupies 1, 2 or 3 slot positions)
Inputs

Measuring Accuracy

Derived Measurements

3 CT and 4 VT;     Options for a maximum of 9 CT and 9 VT

V and I: +/-0.25% (+/-0.1% on request)

MW,  MVar,  MVA,  PF  &  Hz

Current Inputs 1A or 5A   or Rogowski    or line post sensor inputs
Voltage Inputs 0-275V     or line post sensor inputs
Communication Interfaces
Basic Configuration (Serial + Ethernet)

Optional Additional Ethernet Ports or Serial Ports



Optional Expansion Module

1x Serial RS-232/485 (D-Type) + 1x Ethernet 10/100BaseTX (RJ-45 connection)

2x Ethernet (10/100-TX (T) or 100-FX Multimode (M))  or

2x RS-232/485

4x RS-232/485; GPS                Occupies 1 additional slot position

Plant Interface Modules
Number of available slots (excl. PSU & CPU) 10 Slots  Panel Mount      (Refer to optional modules above for slot requirements)

18 Slots  19” Rack Mount   (Refer to optional modules above for slot requirements)

Electrical Noise Immunity
High Frequency disturbance

Fast Transient disturbance

Electrostatic Discharge

RFI Susceptibility

High Frequency Conducted Immunity

Power Frequency Magnetic Field Immunity

IEC 61000-4-12, C37.90.1, IEC 60255-22-1

IEC 61000-4-4, C37.90.1, IEC 60255-22-4

IEC 61000-4-2, IEC 60255-22-2

IEC 61000-4-3 CISPR 22

IEC 61000-4-6

IEC 61000-4-8

Environmental Conditions
Temperature Continuous Operation

Transportation and Storage

-20° to +60° C               IEC 60068-2-1 & IEC 60068-2-2

-40° to +70°°C

Relative Humidity

Vibration

Drop & Shock

0 to 95% non-condensing           IEC 60068-2-3 & IEC 60068-2-30

IEC 60068-2-6

IEC 60068-2-31

Dimensions
Dimensions  (W * H * D) mm 10 Slot: 288 x 144 x 179 (no connectors) [D = 220 with connectors & covers fitted]

18 Slot: 483 x 144 x 179 (no connectors) [D = 220 with connectors & covers fitted]
