ANM: Defining New Frontiers For Network Automation

A flexible solution designed to help utilities worldwide to reach zero carbon targets by enabling them to connect more renewable sources. It increases network reliability whilst maximising the existing assets. It provides a platform that becomes a key tool for utilities in their transition to a DSO.

What we deliver?

Using ZIV's ANM DERM

The most advanced ANM solution on the market. Designed in a modular format, it allows the customer to expand the system as required. Scalable from a single GSP up to an enterprise wide scheme.  It utilises live data from the field to ensure the most accurate information is available

Applications

Constraint Manager

Main Functionality :

This module monitors for thermal and voltage violations in realtime. On detection of one or more network violations, DERs contributing to the violations are curtailed in order to resolve the problem. DERs can be constrained based upon user-defined Principles of Access (POAs). The ANM module can respond to both demand-led and generation-lead constraints, and as such will respond appropriately to all types of DERs, including energy storage.

Virtual Power Plant

Main Functionality :

The Virtual Power Plant Module (VPP) can provide ongoing MW and MVAr support services at the point of delivery i.e. the Grid Supply Point. The VPP module determines the amount of MW and MVAr available in realtime from each of the participating DERs , allowing for network constraints and provides an aggregated MW and MVAr

Microgrid Controller

Main Functionality :

The Microgrid Controller performs constant analysis of the network in real time to determine the power flows and network voltages throughout the network area constantly balancing load and generation in realtime. The controller maintains all voltages and powerflows within the network constraints and constantly maximises the headroom and foot-room available at the grid forming generator to respond to unexpected events network disturbances such as sudden loss of demand or generation capability.

Generation & Demand Forecasting

Main Functionality :

The Predictor provides short and long range predictions of load and generation for use in the decision making processes. It uses neural forecasting to predict load and generation based on historical data (load, generation, type, time/date, holidays, weather, configuration etc.). It supports an active learning process where the neural model is continually learning from historical data to optimise the accuracy of the predictions.

Constraint Forecaster

Main Functionality :

The Constraint Forecaster performs network analysis using predicted demands and generation to forecast when and where thermal and voltage violation will occur on the network and can calculate when DER constraints will be necessary.

Inputs from predictor module ensures that expected weather conditions and tidal patterns are factored into the result. The analysis can also include the expected outage planning and switching schedules to ensure that the results fully reflect the expected conditions.

Balancing Services

Main Functionality :

The Balancing Module is designed to handle active and reactive power security requirements from the Transmission Operator.



When the Transmission Grid requires rapid support from the Distribution Networks, the Balancing Services module delivers rapid instructions to DERs upon receipt of the TO’s deployment signals; calculating what action is required; to provide the required service whilst maintaining the distribution networks security.

Our Platform

End-to-End Platform

Constellation is a full solution platform offering robust field hardware, substation and enterprise level software and complete design and integration services. The Constellation Platform covers Level 1 DER Controllers, Level 2 Substation Controllers and Level 3 and Level 4 Enterprise Software.

Incremental Deployment

The system’s modularity allows it to easily scale from a single substation network to a large regional or national system supporting dual and triple location redundancy for increased resilience. The system can be deployed incrementally in the knowledge that it can meet larger, future requirements.

Real Time Network Analisys

The system is unique, in that it is continuously analysing the current network state and the alternative N-1 states, evaluating the thermal and voltage ratings, network transients and fault levels to determine the optimal network operation

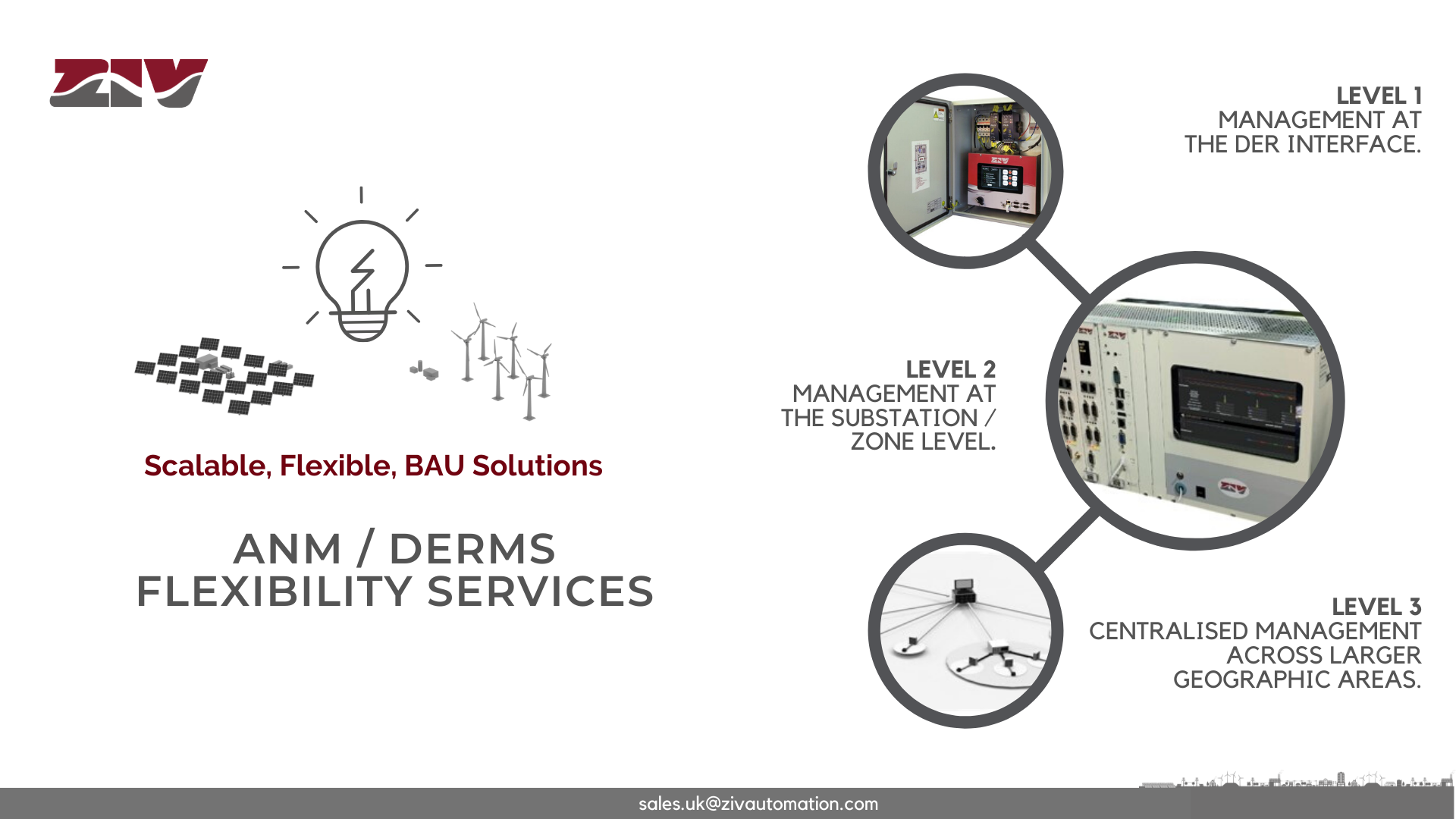

ANM Level 1, 2, 3 Offerings

LEVEL 1

  • Setpoint / Trip control to DER
  • MW, Mvar, V and PF operating modes
  • Intelligent failsafe operation
  • Local operation display
  • Connection Voltage control
  • PQ curve monitoring and alarming

LEVEL 2

  • Active Constraint Management
  • Adaptive network optimisation
  • Provision of flexibility services
  • MW, Mvar, PF control services
  • Fault level monitoring
  • Pre/Post Fault Curtailment

LEVEL 3

  • Transmission / Distribution DERMS/ANM
  • Multiple GSPs – wide area schemes
  • Provision of flexibility services across SO/TO boundary
  • Constraint Management / Virtual Power Plant
  • Blackstart / Microgrid
  • CIM based model with data driven architecture
  • Integrate multiple Level 2 and Level 1 Control schemes

IEDs for ANM

XCell – Automation Platform for HV and MV Substations

The Ideal Platform for New Substations, facilitating the Integration of IEC 61850 and DLMS Smart Meters. XCell is an advanced substation automation platform designed specifically for HV and MV substations. Its state-of-the-art technology provides real-time access to hardwired plant data, intelligent IEDs, networked IEC 61850 devices and smart meters. This makes it ideally suited for new substations or upgrade and [...]

USP 020 – Multifunction RTU for MV/LV switchgear applications

Telecontrol, FPD, MV and LV supervision in a modular device The USP remote controller is an advanced multipurpose RTU ideally suited to Distribution Automation. Its modular design facilitates the automation of different MV facilities: modern compact RMU, overhead interrupters & reclosers. It offers a cost effective solution for extensible MV/LV switchgear applications and LV feeder monitoring. In addition to standard [...]

Altair Controllers for Distributed Generation Management.

Altair is a Family of High Reliability Robust Controllers for Managing Distributed Generation and Optimising Generation Capacity The Altair family of Generation Management Controllers have been developed in response to industry demand for intelligent management & control of Distributed Generation. The exponential increase in the adoption of Distributed Energy Generation such as Photovoltaic (PV) and Wind has introduced significant challenges […]

Success Stories

UKs Power Potential Project – DERMS

UKs Power Potential Project based on ZIV technology is estimated to save £19.5M through optimisation of DNO assets. The system allows National Grid ESO to procure network support services from UK Power Networks’ distribution network Distributed Energy Resources actively participate by offering available capacity Estimated to save £19.5M with additional benefits of £23M through optimisation of DNO assets

First Active Management System installed in Mongolia

165MW of renewable projects have been connected since 2017 For the first time, Active Network Management has been used as a Smart Grid technique to resolve and manage transmission capacity issues. Location: Desert Solar Power One plant in Sainshand, Dornogobi province Client: A project for Desert Solar Power One LLC in collaboration with Monhorus LLC and UB Grid Consultancy Ltd [...]

ZIV Automation has supplied a SAS + ANM system for Llynfl Afan Renewable Energy Park

ZIV SAS + ANM Location: Llynfl Afan Client: NRS Group from Livingston (Scotland), and Gamesa Energy UK (GEUK). ZIV System: ANM + SAS ZIV Automation was chosen to provide a turnkey solution for protection and automation at Llynfl Afan Renewable Energy Park, together with the main contractor, NRS Group from Livingston (Scotland), and Gamesa Energy UK (GEUK). The park is connected [...]

SSEN picks ZIV´s Active Network Management Solutions

SSEN picks ZIV automation to help deliver a smarter energy system for its 3.8 million customers Location: UK Custormer: SSEN Scottish and Southern Electricity Networks EPC / Partner: N/A ZIV System: ANM Keywords: Active Network Management, ANM, SSEN, Smart grid, renewables integration, Distribution Grid Digitalization Scottish and Southern Electricity Networks (SSEN) following a competitive tendering process has picked ZIV automation to provide [...]
